Cabled Internet Connection

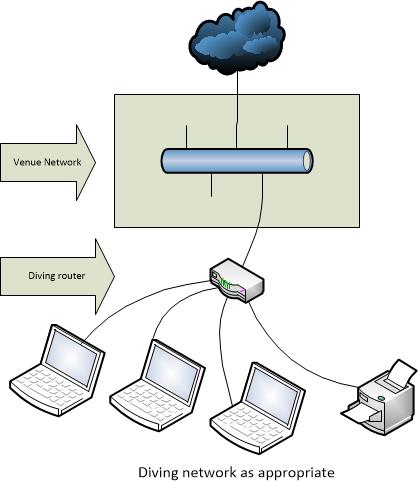

The following diagram shows the router for the DiveRecorder network being connected by its WAN port to a LAN port of the venue network. This isolates the diving LAN from the venue but allows the internet traffic of the diving LAN to pass through the venue's LAN out to the Internet.

Cabled connection
